FAST ARC Control

Convenient: 100 programs with 20+ pre stored

Clever: continuous self test

Clear: settings at a glance

Safe: EASY patient monitoring

Flexible: outputs for four instruments

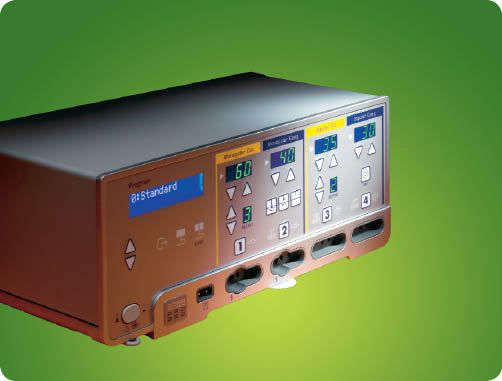

Simply more to offer The ARC 350

ARC CONTROL is optimally integrated at all times, while self-check programs continuously provide maximum safety.

The ARC CONTROL regulator constantly adjusts the power output. You set the maximum power and the machine continuously adjusts for tissue variations and changes in cutting area or speed to maintain an even cut using the minimum power possible.

Safe: The EASY electrode application system monitors the neutral electrode connected to the patient and signals any change in resistance to the user.

Clever: The continuous self-test program ISSys monitors all safety-related parameters several hundred times a second and signals any faults.

Flexible: 2 monopolar and 2 bipolar outputs enable 4 different instruments to be configured independently.

Convenient: 20+ of the 100 locations for storing programs are preprogrammed for commonly used procedures. Use them as a base for your own programs or utilise them as they are.

Four separate outputs can be individually and quickly configured and the settings visually checked by the operator at any time.

Argon compatible with the addition of the ARC PLUS unit.

Ligation option, delivering tissue sealing on vessels of up to 7mm Ø in open and minimally invasive surgery.

In ARC350 format the machine is ideally suited to the following applications:

Field of application		Program
Cardiology		DryCUT, Mamaria, SimCOAG, Thorax
ENT surgery		ENT
General surgery		Standard
Gynaecology		Abdominal Ligation, EndoLAP, Hystero
Laparoscopy		EndoLAP Bipolar CUT, EndoLAP II Ligation
Liver surgery		Argon Open, Argon Ligation
Neuro surgery		Micro Neuro
Paediatrics		Micro Pediatric
Plastic surgery		Micro Plastic, Macro Plastic, Local Anesthesia
Thorax surgery		EndoLAP II Ligation, Thorax
Urology		TUR-P, TUR-BT, TUR-VAP, Bipolar TUR

With enhanced programs pre installed offering the surgeon the best choice in the following fields:

Gastroenterology programs		Urology programs		Cardiology programs
GastroCUT (polypectomy)		(prostate resection)		DryCUT
GastroCUT (papillotomy)		TUR-BT (vesical tumours)		SimCOAG
Argon Flex		TUR-VAP (vaporisation)		Thorax
		Bipolar TUR		Mamaria

For gastroenterology operations the combination of cutting and coagulation current gives optimum results when using polypectomy loops or papillotomes.

For urologists utilising underwater cutting, three programs are available in monopolar or bipolar mode.

For Cardiologists three programs with special cutting current are available and two handswitches can be activated simultaneously with SimCOAG.

For vessel sealing ligation option see ARC 350L which has all the above functionality and Ligation.

For more information on any product please contact us and we will send you more detailed product and accessory specification.
