FAST ARC Control

Convenient: 100 programs with 20+ pre stored

Clever: continuous self test

Clear: settings at a glance

Safe: EASY patient monitoring

Flexible: outputs for four instruments

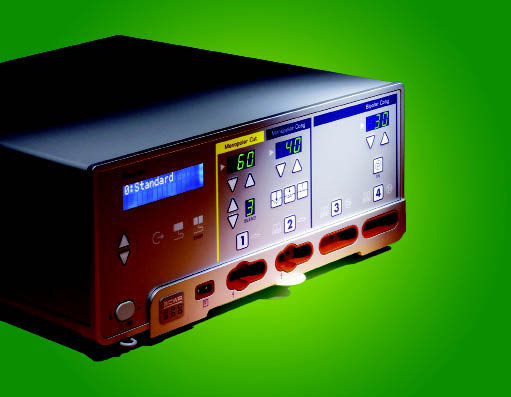

Introduction to the ARC 300

BOWA’s 20 years of experience and the most up-to-date technology combine in the ARC 300 all-in-one unit. Settings for more than 20 standard operations are pre-programmed - and updates are continuously being added. Inside, extremely fast processors ensure that the ARC CONTROL is optimally integrated at all times.

Fast: The ARC CONTROL regulator adjusts the power output to the necessary minimum for tissue variations and changes in cutting area or speed in every case.

Safe: The EASY electrode application system monitors the neutral electrode connected to the patient and signals any change in resistance to the user.

Flexible: 2 monopolar and 2 bipolar outputs enable 4 different instruments to be configured independently.

Clever: The continuous self-test program ISSys monitors all safety-related parameters several hundred times a second and signals any faults.

Convenient: More than 20 of the 100 locations for storing programs are already preprogrammed. They can be shown and hidden as well as named individually. Information can be displayed in different languages as required.

With enhanced programs pre installed offering the surgeon the best choice in the following fields

Urology programs	Cardiology programs
TUR-P (prostate resection)	DryCUT
TUR-BT (vesical tumours)	SimCOAG
TUR-VAP (vaporisation)	Thorax
Bipolar TUR	Mamaria

For urologists for underwater cutting, three programs are available in monopolar or bipolar mode.

For Cardiologists three programs with special cutting current are available and two handswitches can be activated simultaneously with SimCOAG.

GastroCut (option)

Benefit from the optimised GastroCut programs for endoscopy.

GastroCut programs GastroCut Pol (polypectomy) GastroCut Pap (papillotomy)

*The optional programs for gastroenterological operations the combination of cutting and coagulation current gives optimum results when using polypectomy loops or papillotomes.

Other programs pre installed for immediate use and adaption on the ARC 300 invclude

Field of application	Program
Cardiology	DryCUT, Mamaria, SimCOAG, Thorax
ENT surgery	ENT
General surgery	Standard
Gynaecology	Abdominal Ligation, EndoLAP, Hystero
Laparoscopy	EndoLAP Bipolar CUT, EndoLAP II Ligation
Liver surgery	Argon Open, Argon Ligation
Neuro surgery	Micro Neuro
Paediatrics	Micro Pediatric
Plastic surgery	Micro Plastic, Macro Plastic, Local Anesthesia
Thorax surgery	EndoLAP II Ligation, Thorax
Urology	TUR-P, TUR-BT, TUR-VAP, Bipolar TUR

Like all ARC generators, the unit can optionally be combined with the ARC PLUS argon unit for gastroenterological operations: Argon and Argon-Flex. By using the Argon and Argon-Flex programs, the ARC 300 becomes a powerful workstation for endoscopy and surgery.

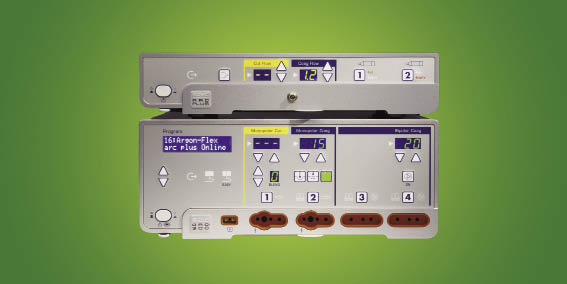

ARC300 with ARC Plus argon module

Rigid Handle with Argon electrode	Argon Flex electrode

Accessories

A full range of accessories is available for the ARC generators including SHE SHA Smoke Evacuation, forceps, handswitches, dispersive plates, electrodes, footswitches and Cart to keep devices secure.
